Description
The traction type ash spreader is widely used in the construction of highways, railways, airport roads and other fields, and is suitable for spreading various powder materials such as cement and lime. It features a stable power output and is equipped with adual filtration system, consisting of a block screen and a swing vibrating screen located at the top of the silo. This system accurately screens materials such as white ash, cement effectively preventing agglomeration and ensuring uniform and fine spreading.
The entire machine is equipped with wear-resistant engineering tires and a reinforced chassis, enabling it to operate steadily in complex conditions such as potholes and ramps. This machine significantly improves construction efficiency and quality while reducing labor costs.
Features

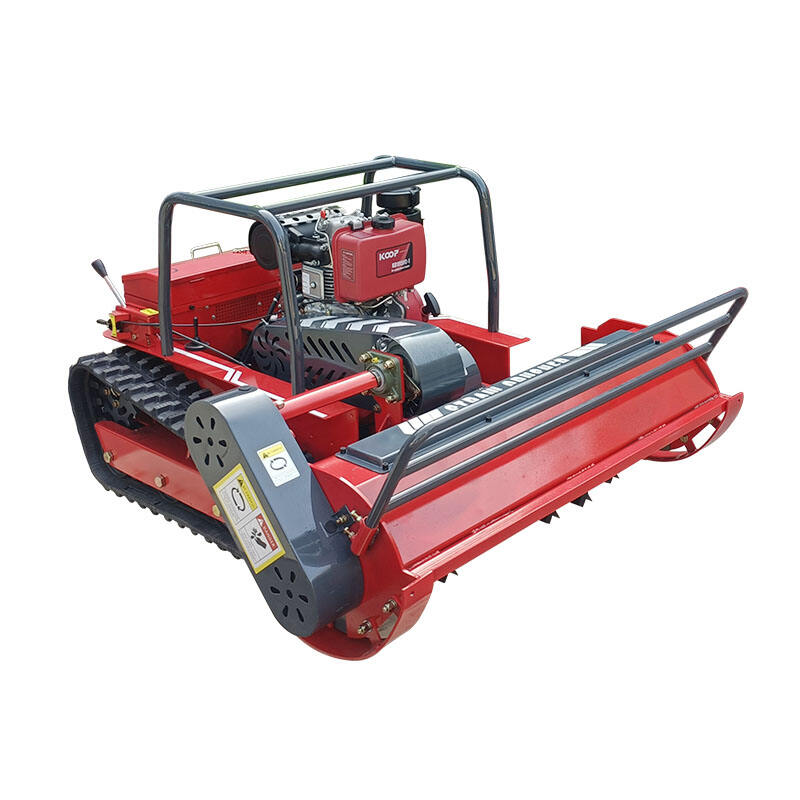

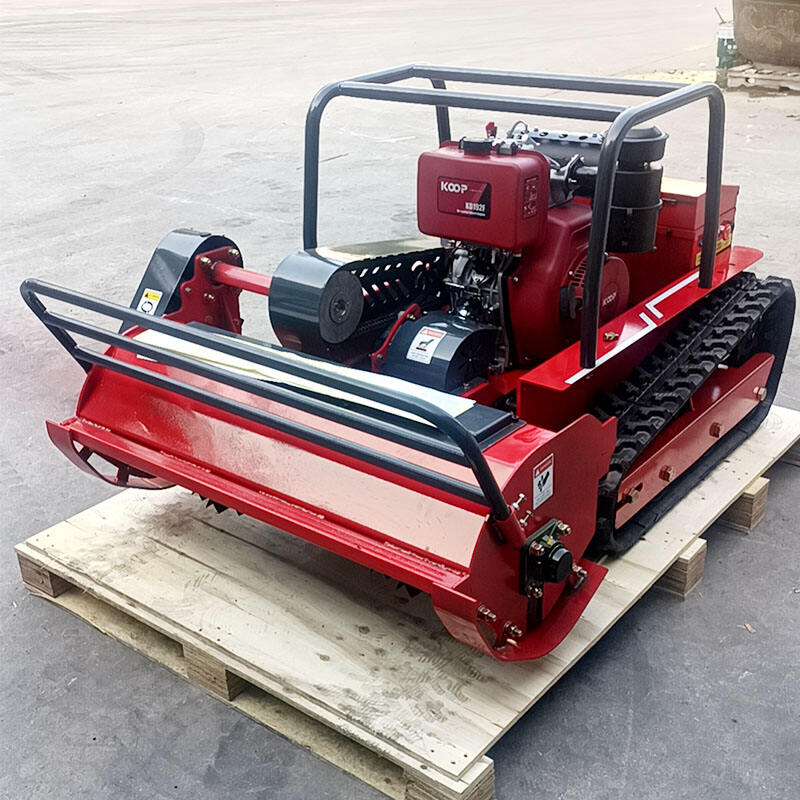

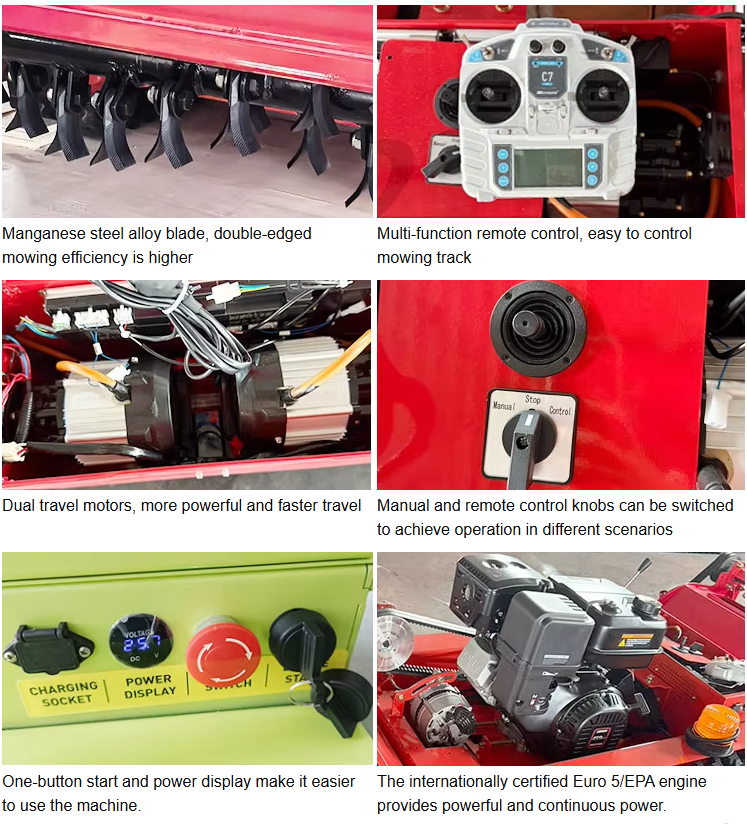

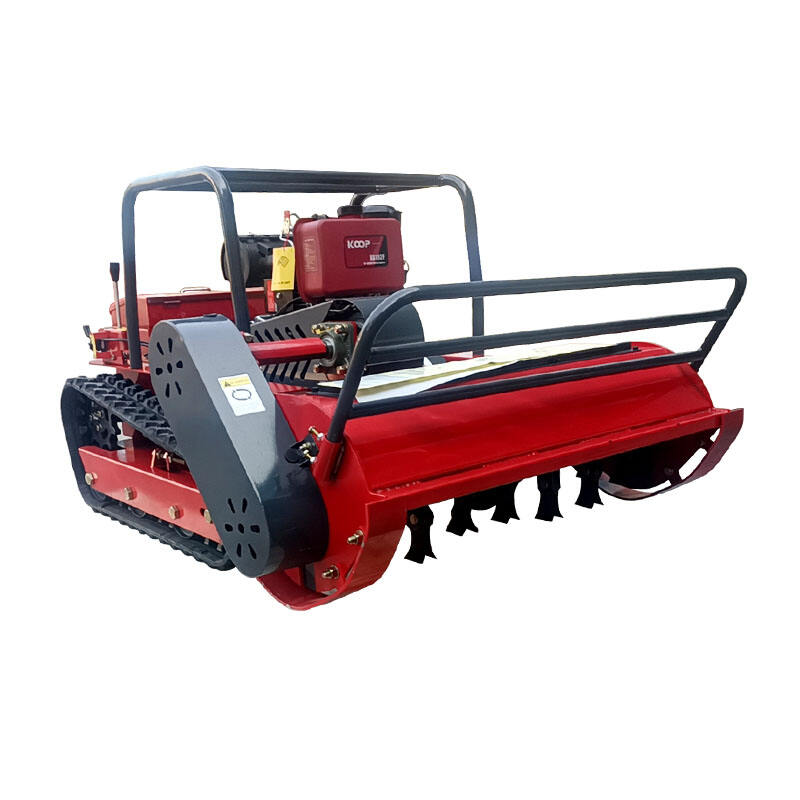

1. This intelligent remote control lawn mower saves time on manual mowing.
2. Flexible operation with a remote control range of up to 200 meters.
3. Optional automatic lift for the working head to avoid obstacles.
4. Cutting widths available in 800mm, 1000mm, and 1200mm. The cutting height can be easily adjusted using the remote control, and the grass height can be adjusted from 20mm to 200mm.
5. Our lawn mowers are certified by international standards including ISO, CE, EURO 5, and EPA, offering powerful power, high mowing efficiency, and 24/7 operation.
Service
1.24h customer service online guidance, and provide guidance videos and product manuals.
2. Before shipment, technical personnel test the machines one by one to ensure quality.
3. Video about machine details. (shot as needed)
4. Core parts after-sales service up to 12 months.
5. If special parts are damaged, they will be sent by air express delivery.
6.For suppliers, we will cooperate with you for a long time and provide you with sufficient profit margin.
Model | LY-800 | LY-1000 | LY-1200 |
Product Dimensions | 1560*980*820mm | 1560*1170*820mm | 1560*1380*820mm |
Packaging Dimensions | 1620*1040*1030mm | 1620*1220*1030mm | 1620*1430*1030mm |
Net Weight | 338kg | 346kg | 356kg |
Packaging Weight | 398kg | 415kg | 432kg |
Remote Control Range | 200m | 200m | 200m |
Cutting Width | 800mm | 1000mm | 1200mm |
Cutting Height | 20-200mm, Manual Adjustment | ||
Starting Method | Electric Start | ||
Gradeability | Up to 45° | ||
Engine | Diesel | ||
Engine Brand | KOOP 192F, 8.6kW /Loncin | KOOP 195F, 9.2kW/Loncin | |
Travel Motor | 650W Brushless Motor (2 pcs) | ||
Blades | Flail Blades,32 pcs | Flail Blades,40 pcs | Flail Blades,48 pcs |
Battery | 24V 20Ah | 24V 20Ah * 2 pcs | 24V 20Ah * 2 pcs |
Fuel Tank Capacity | 5.5L | ||
Fuel Consumption | 1.5 L/H | 1.8 L/H | |
Travel Speed | 0-6 km/h | ||
Mowing Efficiency | 4000 m2/h | 5000 m2/h | 6000 m2/h |
