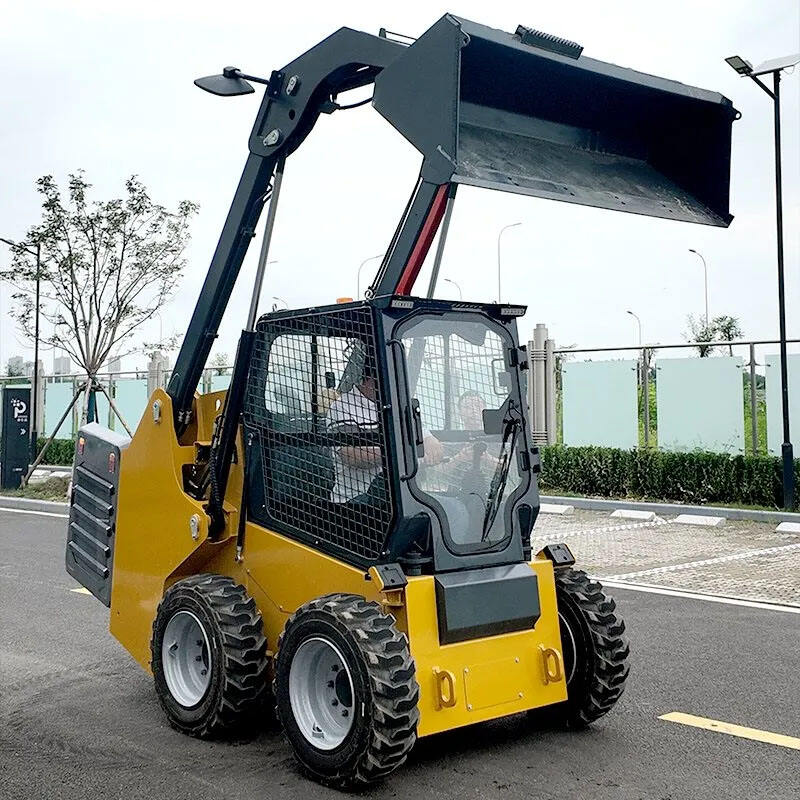

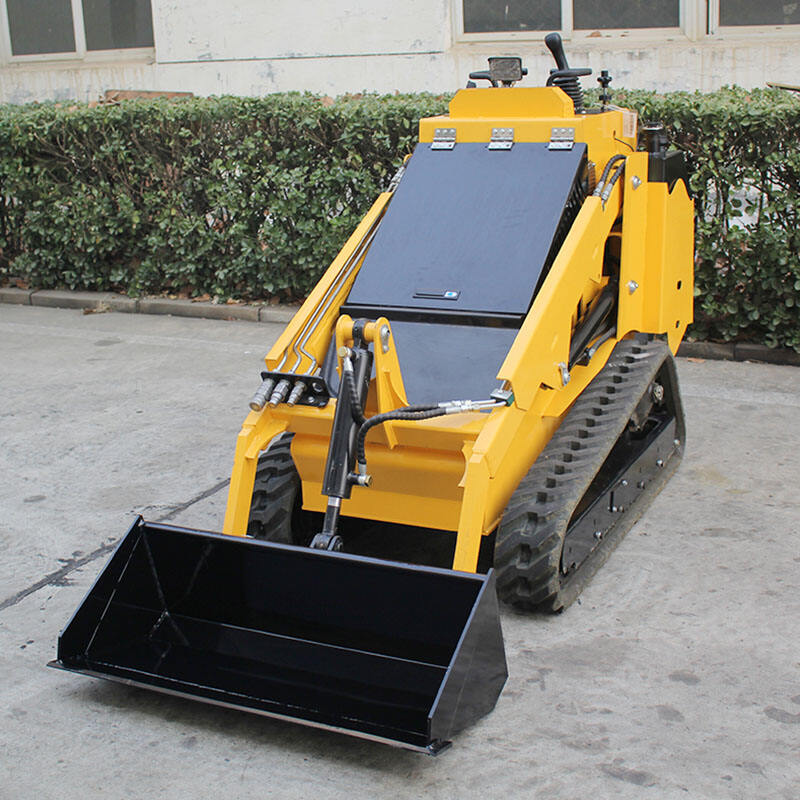

Multifunction Hydraulic Mini Skid Steer Loader – 40% Efficiency Boost, Tracked for Uneven Terrain

Description

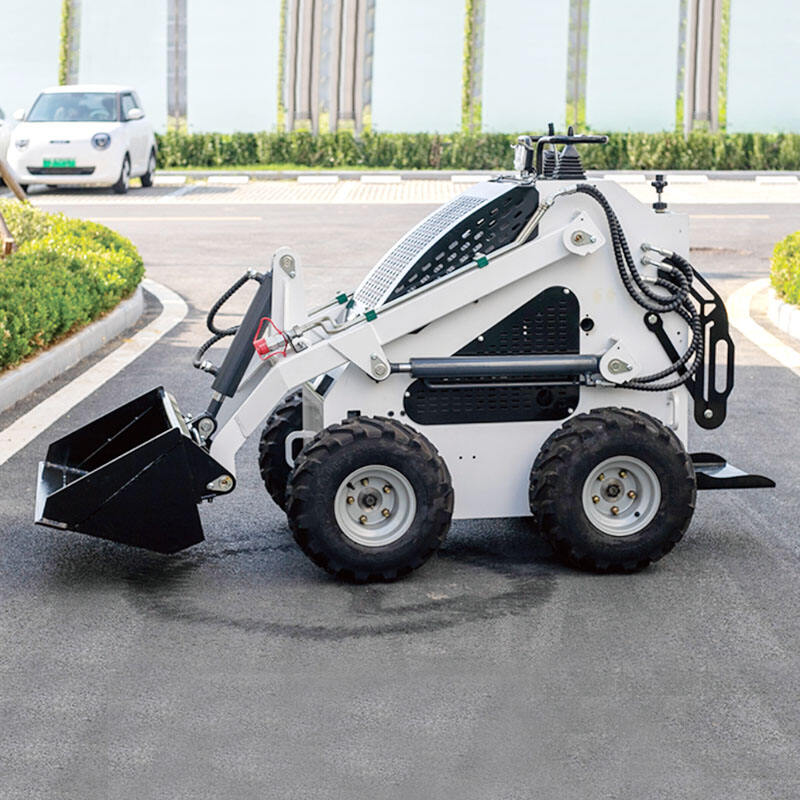

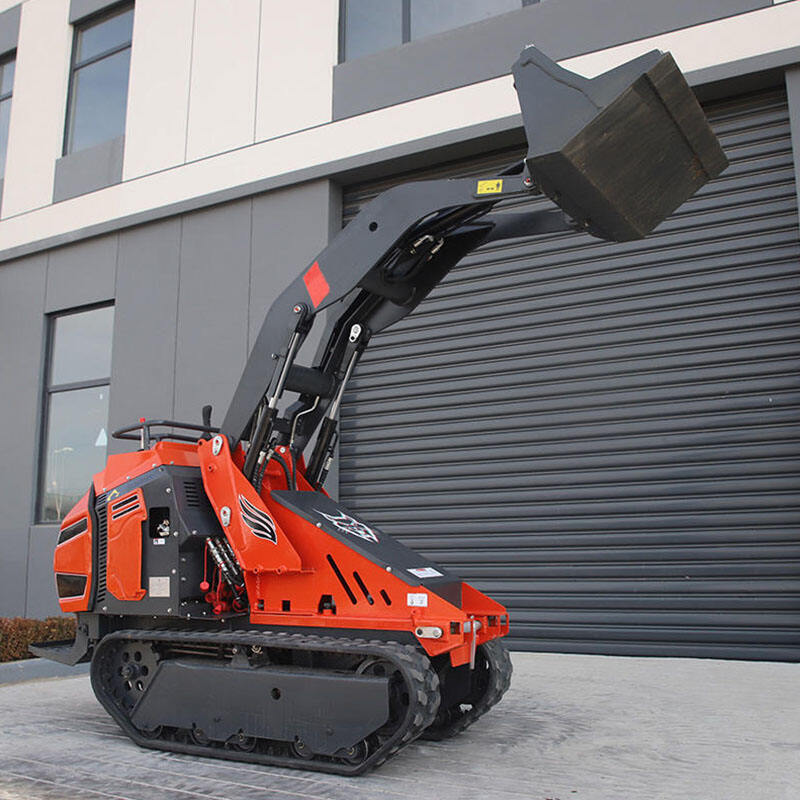

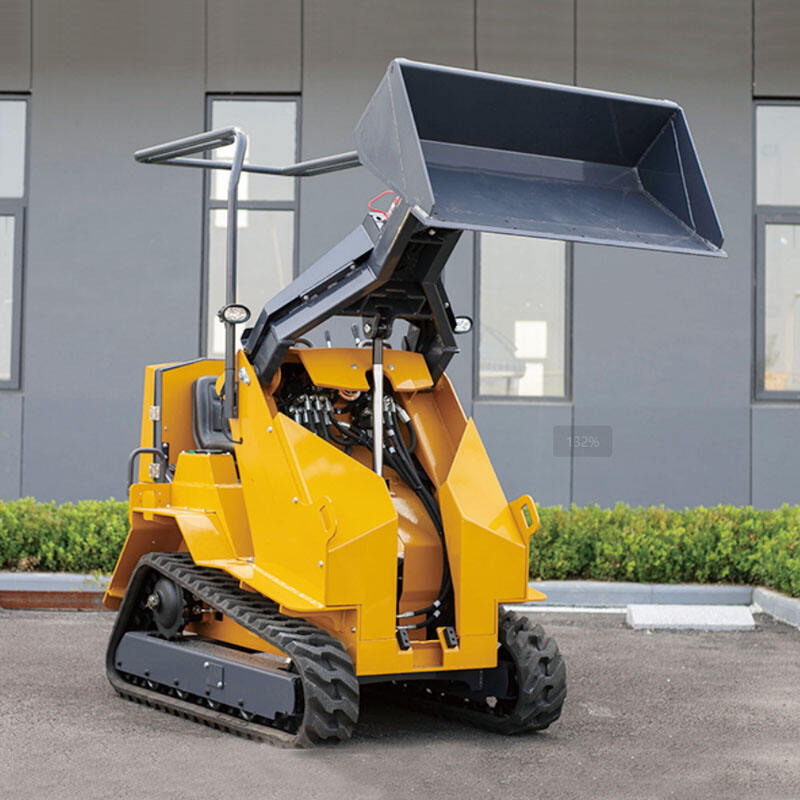

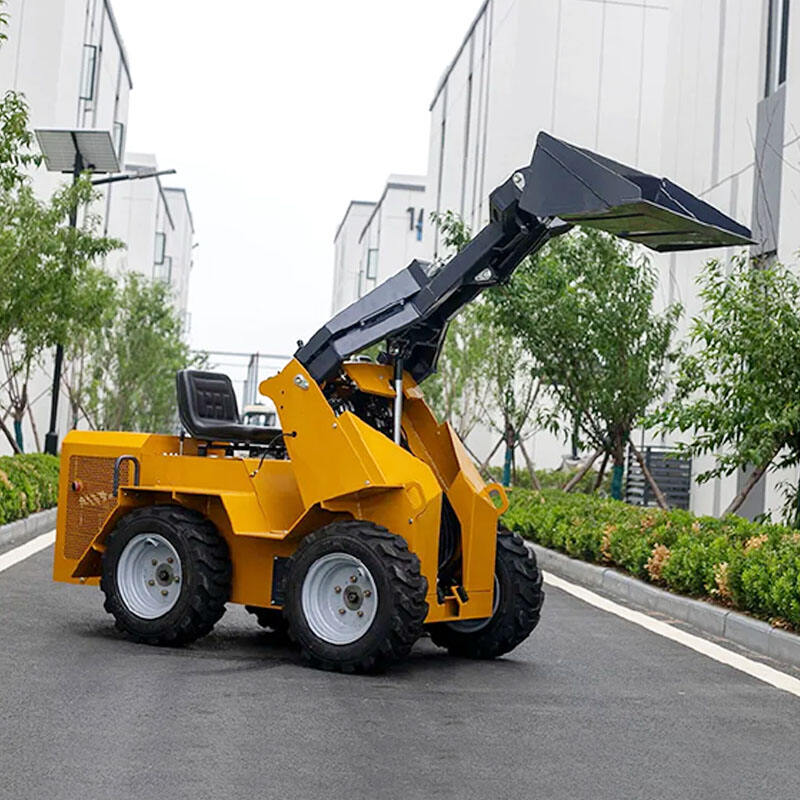

The skid steer loader is mainly suitable for working environments where the site is narrow, the ground is uneven, and the tasks change frequently. It is widely used in infrastructure construction, industrial sites, dock loading and unloading, urban roads, residential projects, barns, livestock sheds, airport runways, and other scenarios. It is also commonly used as auxiliary equipment for large-scale construction machinery, helping to improve overall work efficiency.

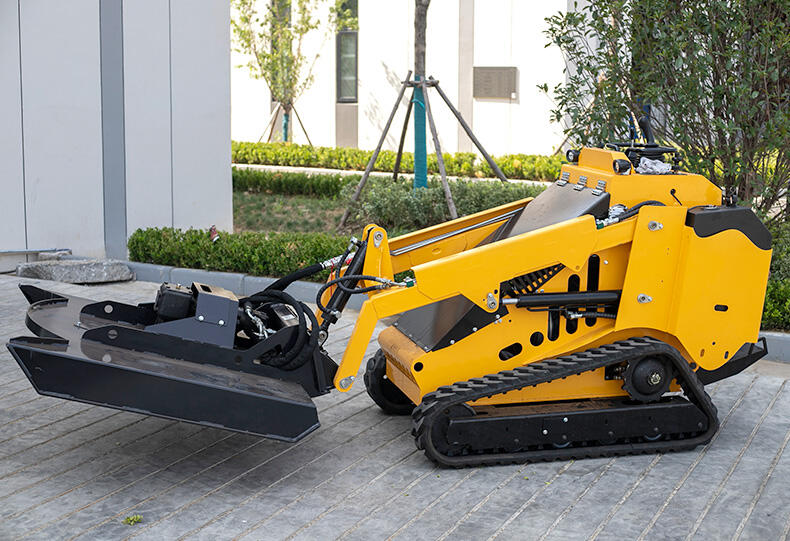

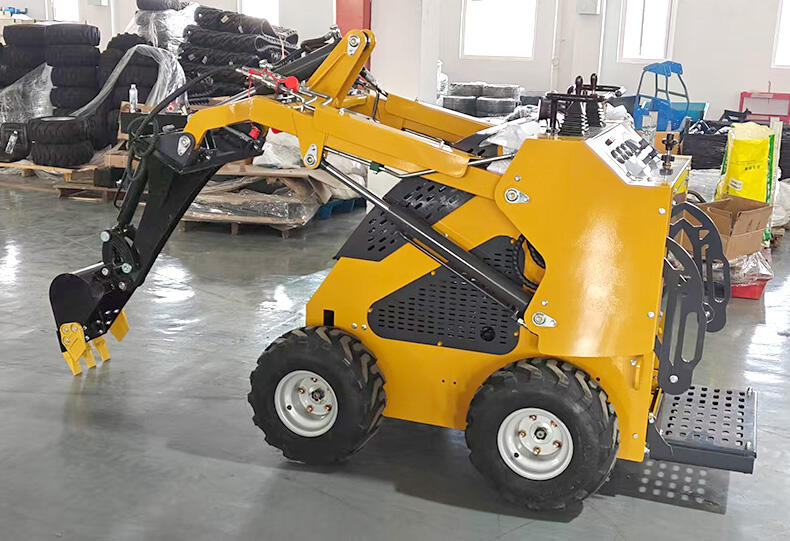

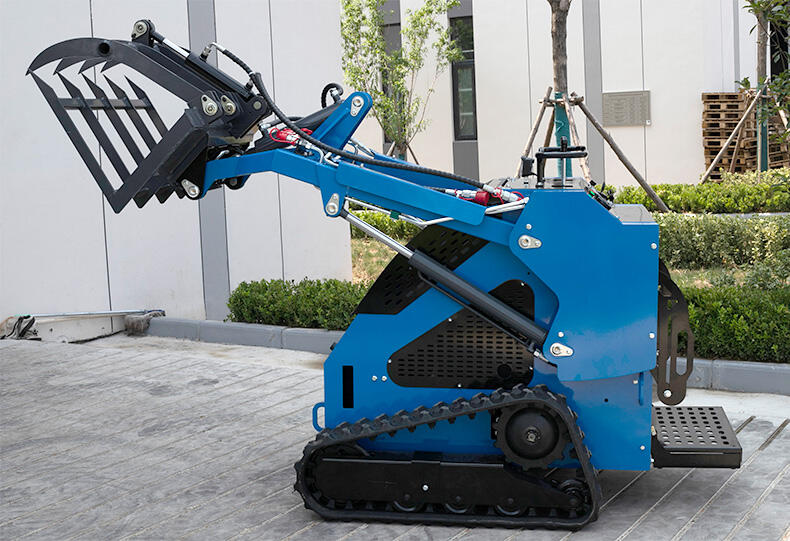

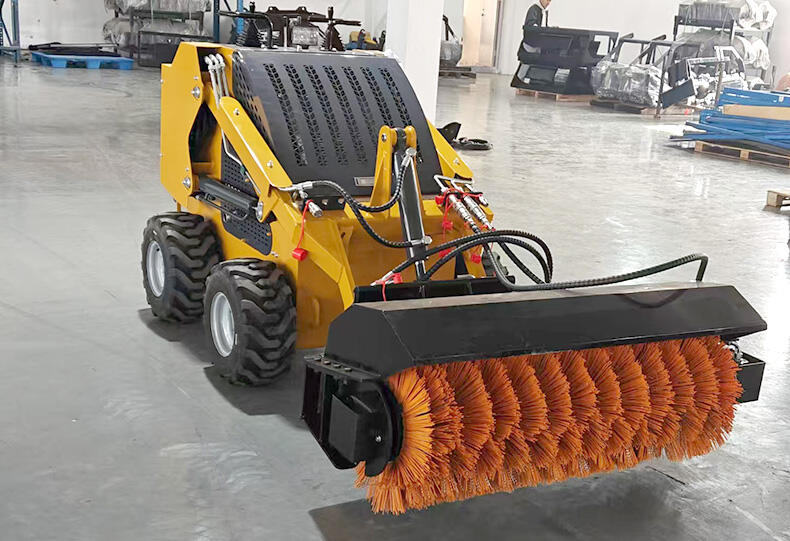

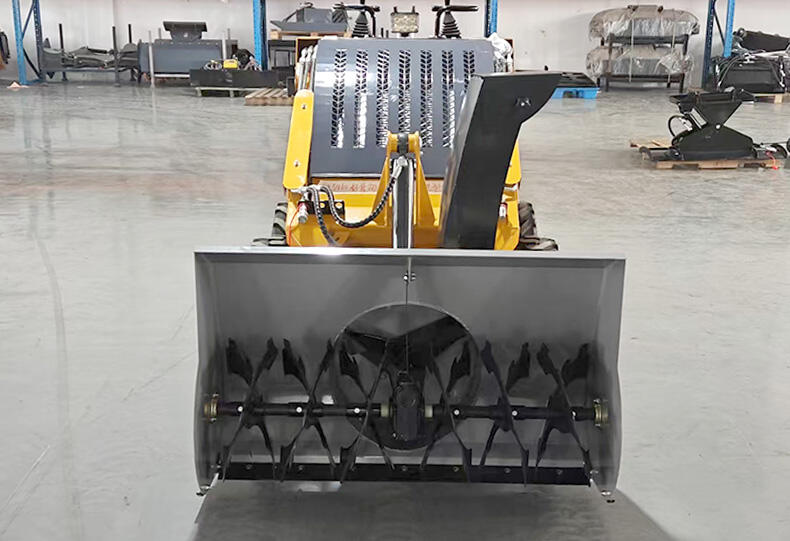

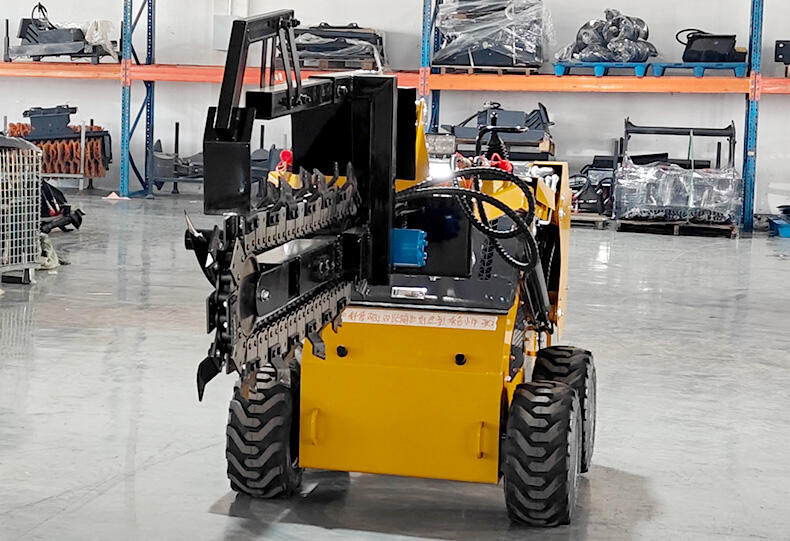

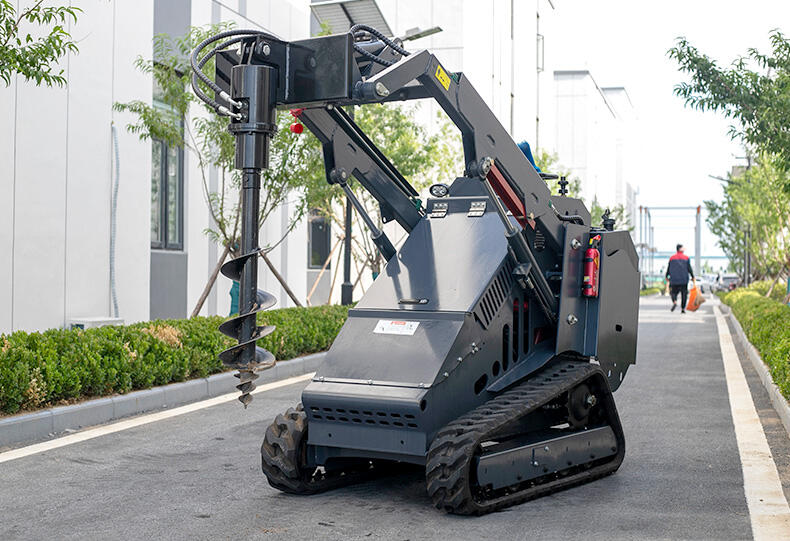

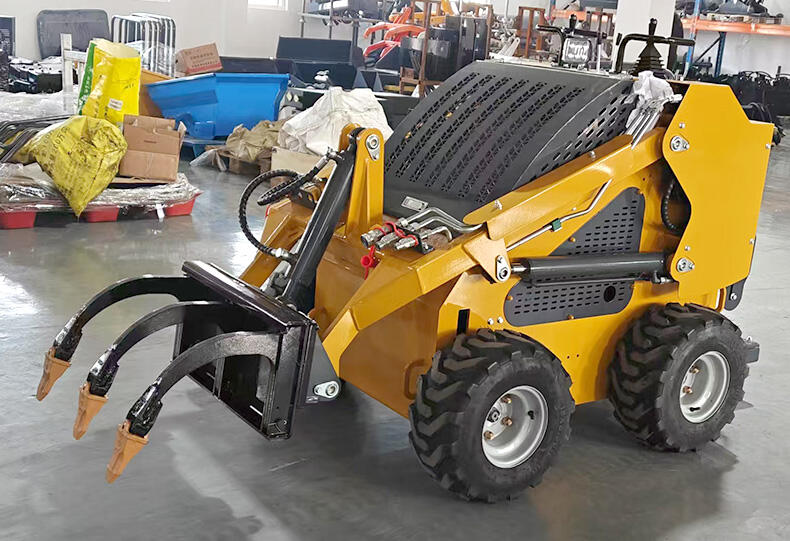

The skid steer loader can be equipped with a variety of attachments, such as mixing buckets, trenchers, auger drills, snow throwers, branch shredders, and excavators, allowing it to perform a wide range of tasks with great flexibility and adaptability.

Advantages

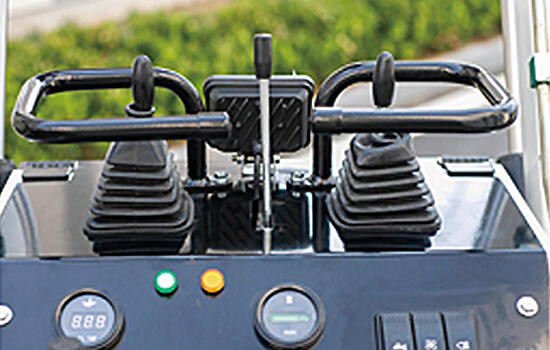

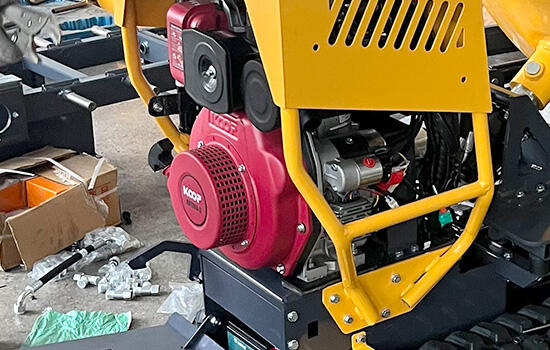

Pilot control lever The dual-pilot handles provide precise control, are easier to operate, and their intelligent design makes your work more efficient.	Branded Engines CE/EPA certified engine, offering excellent fuel economy and stable power output, maintaining strong performance even under harsh operating conditions.

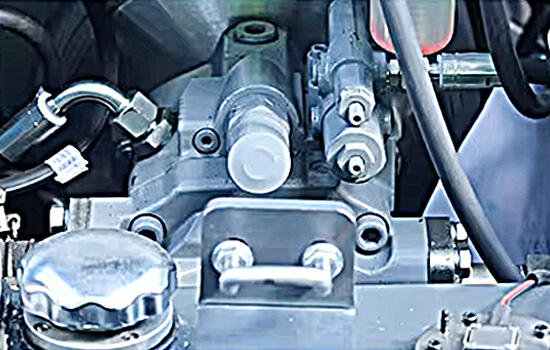

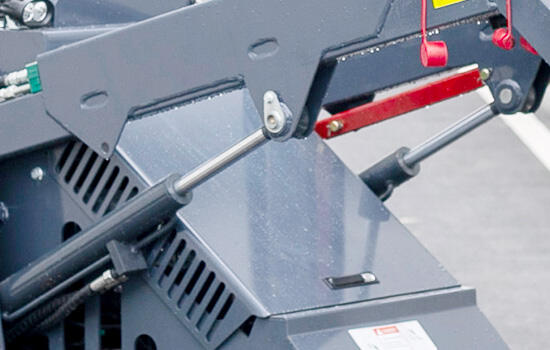

Multi-Pump Hydraulic System The multi-pump hydraulic system has a high total flow rate, enabling smooth operation while improving efficiency.	Hydraulic Cylinders High-quality hydraulic cylinders with overload protection, reliable operation, high lifting force, fast speed, and long service life.

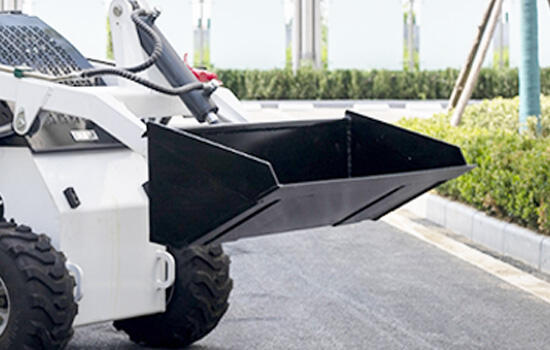

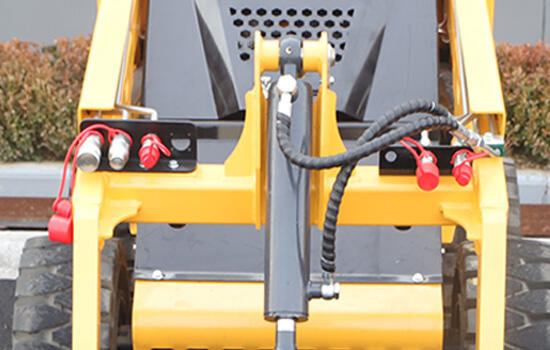

Multiple Hydraulic Circuits Offering up to five auxiliary hydraulic circuits allows for connecting more accessories, expanding your machine's functionality.	Automatic Leveling The automatic leveling function maintains the bucket angle during lifting, reducing material spillage and significantly improving operational accuracy.

Specifications

Model	Operating Weight	Maximum Load	Bucket Capacity	Maximum Height	Ground Clearance
S360 Tire type	900kg	300kg	0.12m³	2400mm	130mm
T360 Track type	900kg	300kg	0.12m³	2400mm	130mm
S460 Tire type	1200kg	400kg	0.12m³	2400mm	110mm
T460 Track type	1200kg	400kg	0.12m³	2400mm	110mm
S390 Tire type	1050kg	300kg	0.12m³	2620mm	180mm
T390 Track type	1070kg	300kg	0.12m³	2620mm	230mm
S490 Tire type	1200kg	350kg	0.12m³	2530mm	180mm
T490 Track type	1200kg	350kg	0.12m³	2530mm	230mm
S750 Tire type	1400kg	450kg	0.15m³	2920mm	240mm
T750 Track type	1400kg	450kg	0.15m³	2920mm	240mm
V1000 Track type	1200kg	650kg	0.19m³	2794mm	200mm
C1200 Track type	1200kg	500kg	0.15m³	2800mm	240mm
TV-S25 Tire type	1200kg	490kg	0.22m³	3410mm	130mm
TV-S55 Tire type	2880kg	890kg	0.4m³	3790mm	185mm
S370 Tire type		210kg	0.07 m³	2415mm	122mm
T470 Track type		450kg	0.12m³	2561mm	195mm

Applications

The skid steer loader is very easy operation, convenient maintenance.

It is widely used in various fields, especially in municipal construction, where its high cost-effectiveness, multi-functionality, and more than 100 supporting auxiliary equipment can make your work easier and more convenient.
