Tractor-driven cement-lime stabilized soil mixing machine

Tractor-driven cement-lime stabilized soil mixing machine

Road construction stabilized soil in-situ mixing machine, hard ground reclamation rotary tiller. Request a free demo today.

Overview
Specifications
Advantages
Applications
Service
Recommended Products

Description

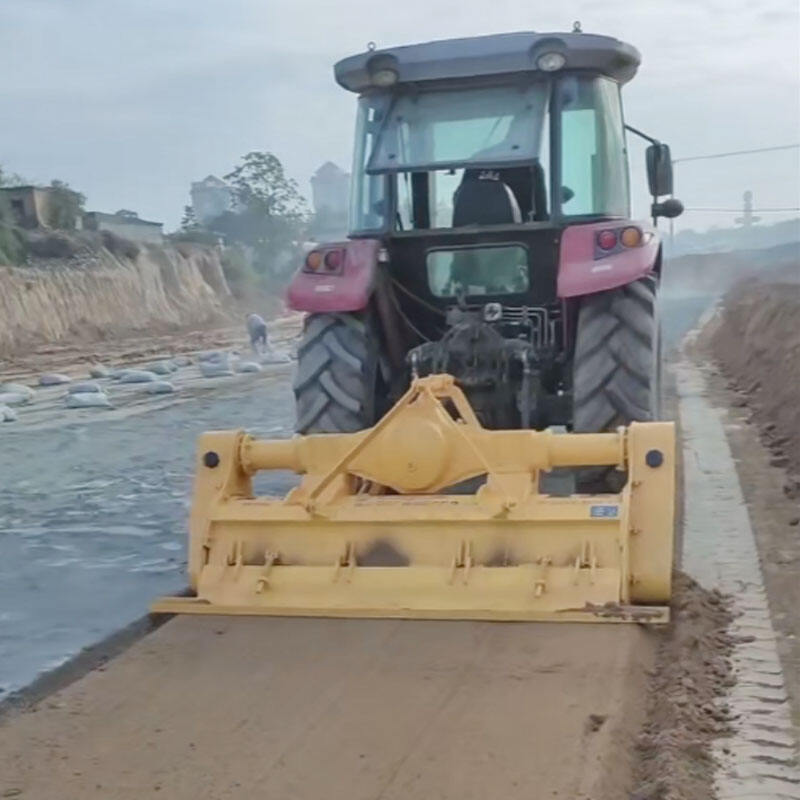

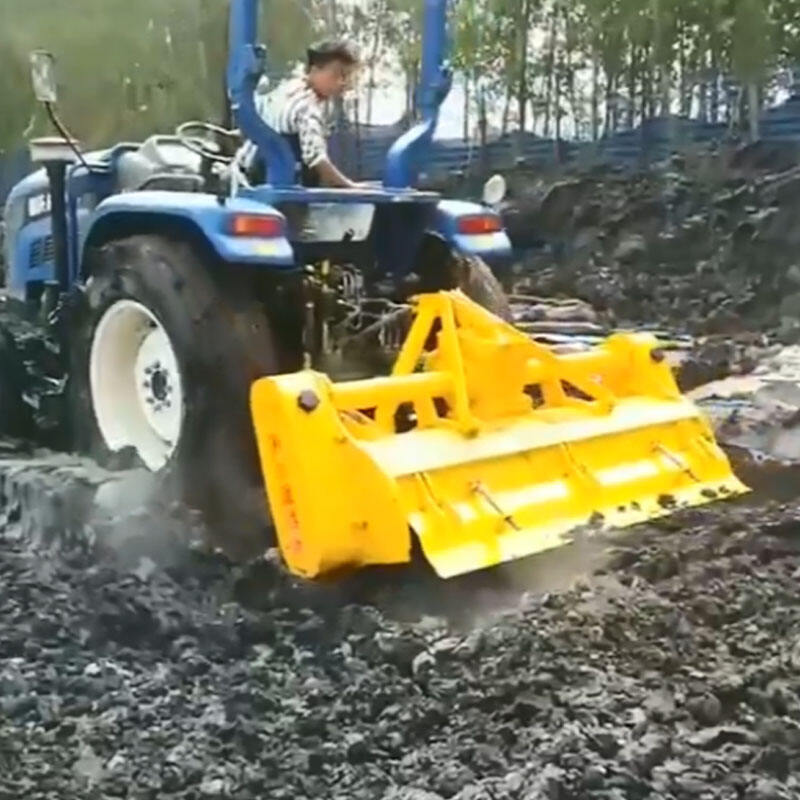

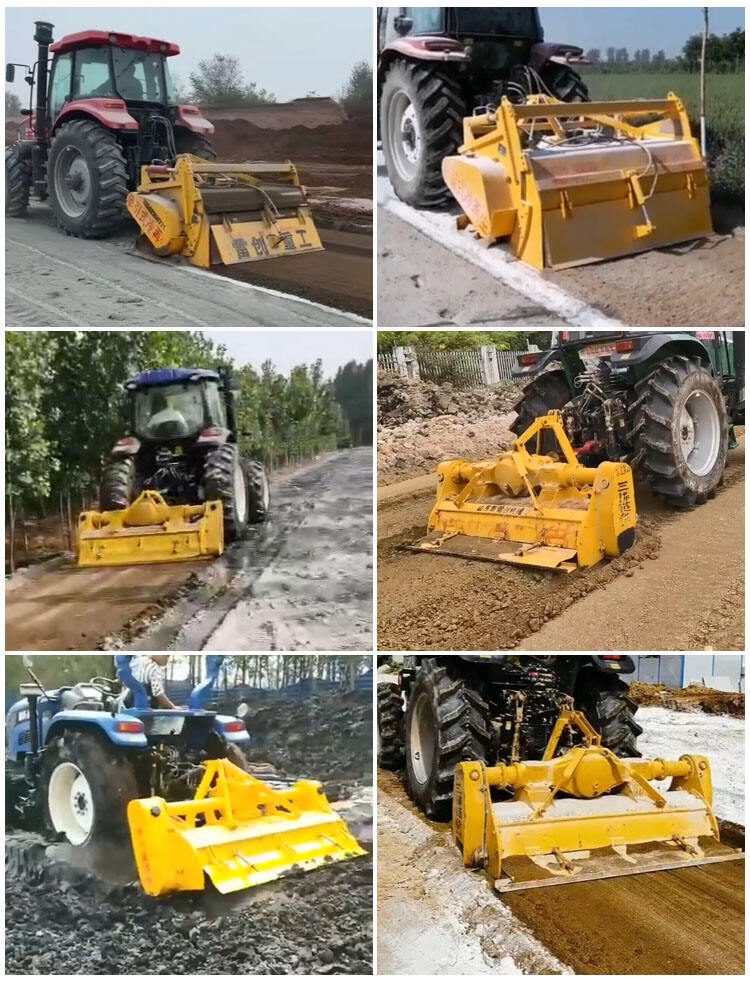

The lime-soil mixer is an important machine in highway construction. It is a rotary processing machine that is widely used in the mixing equipment of various formula materials such as lime soil, lime gravel, cement-stabilized sand, etc. It evenly mixes pulverized soil with stabilizers (such as lime, cement, asphalt, emulsified asphalt or other chemicals, etc.), and is used to mix the base layer of roads, airports, urban buildings and other facilities. It can also be used for soil mixing and crushing operations for old road renovation.

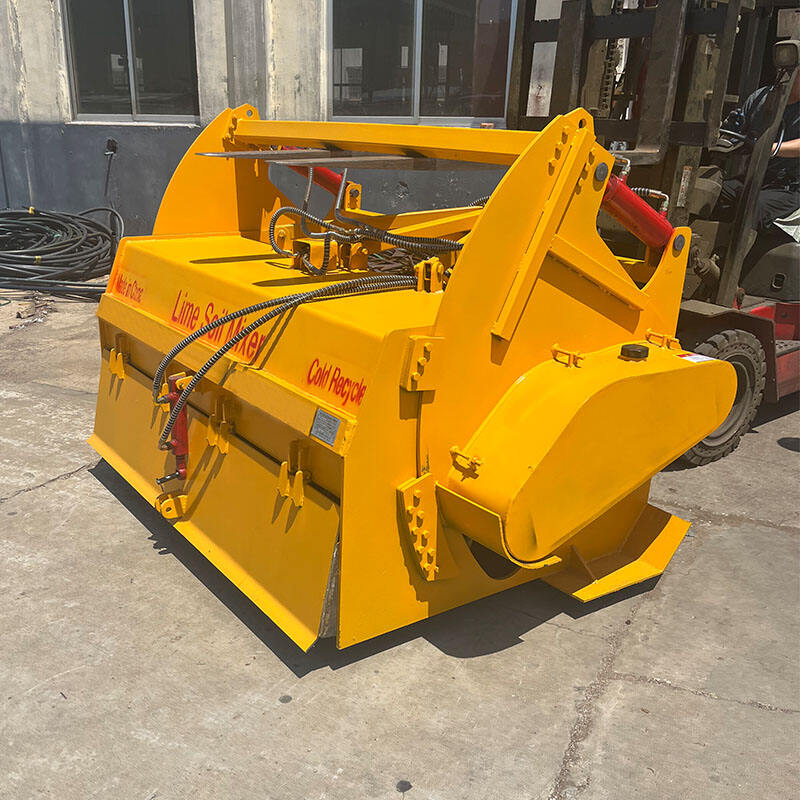

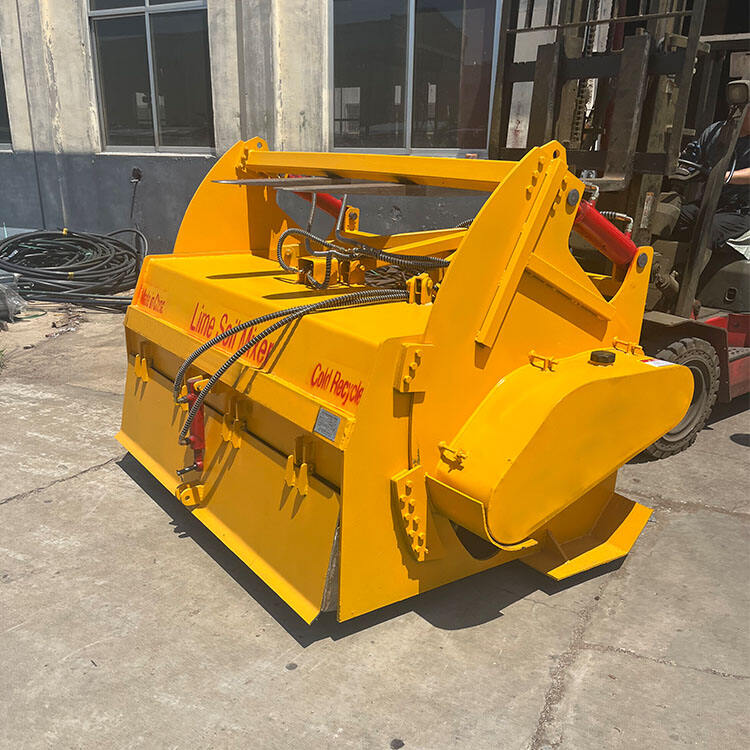

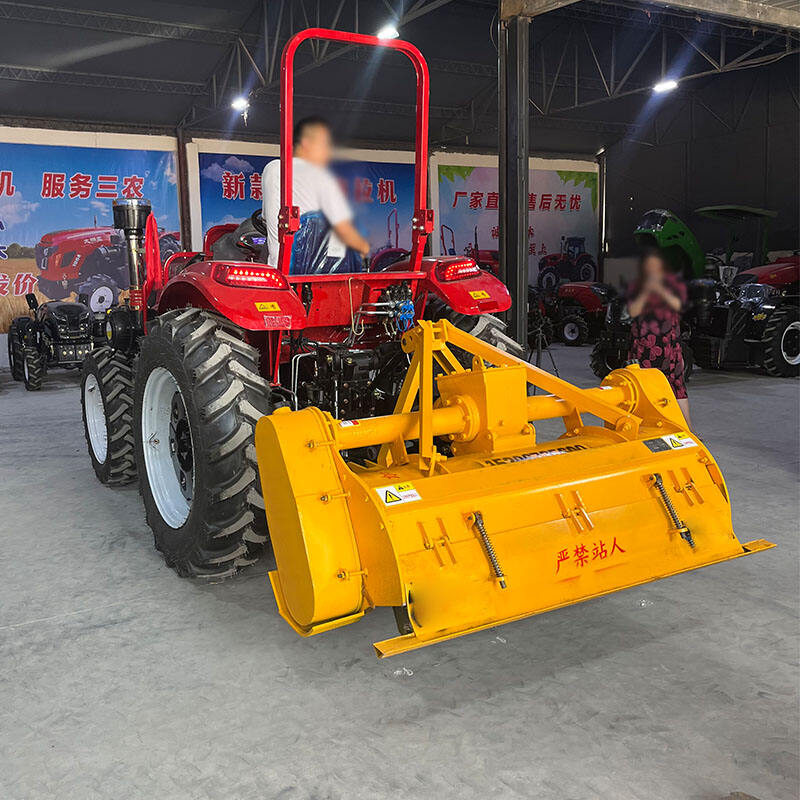

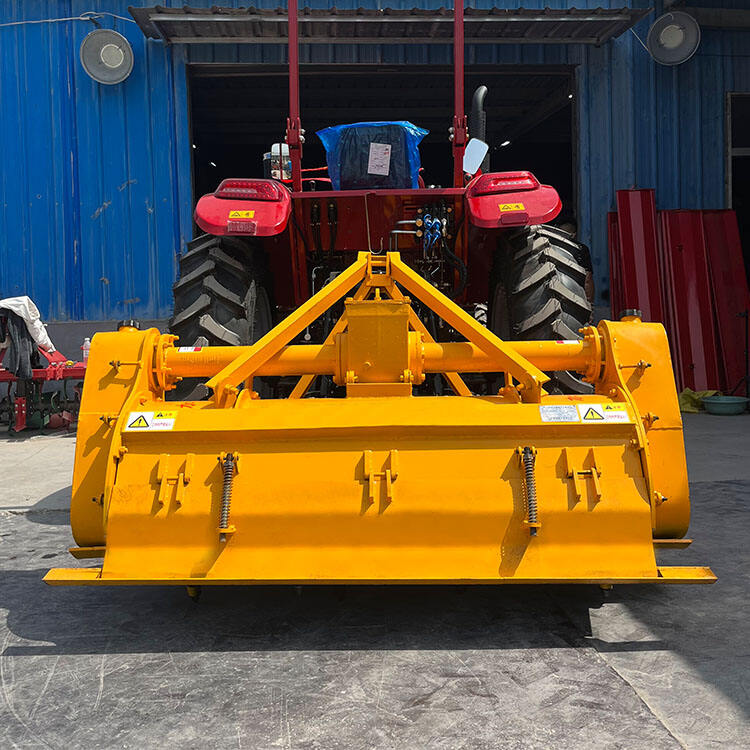

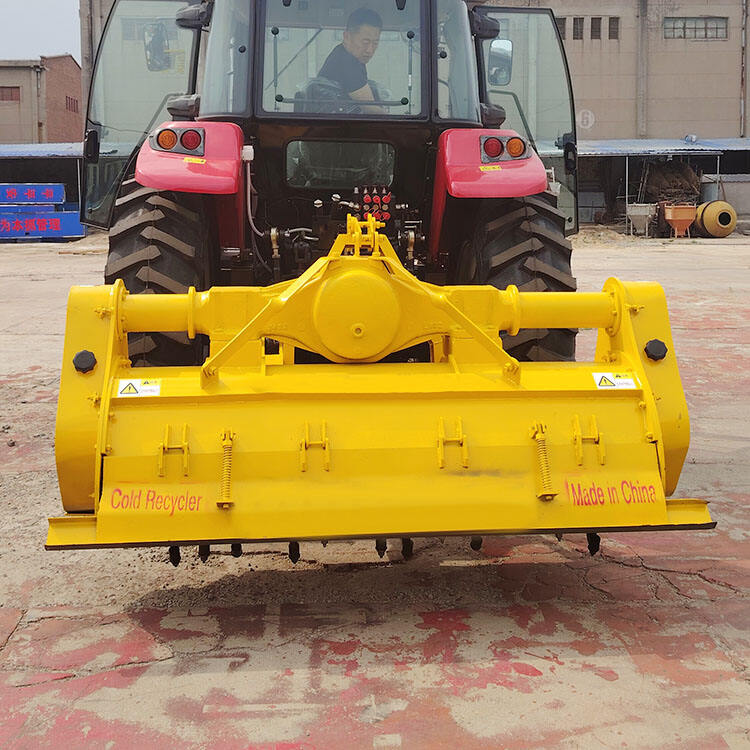

Rear axle mixer	Cold regeneration mixer	Lime soil mixer

Specifications

Model	Rear axle mixer	Cold regeneration mixer	Lime soil mixer
Mixing Width (mm)	1600-2200	1800-2000	1000-2000
Mixing Depth (mm)	0-400	Loose soil 400-450	0-400
Input Speed(r/min)	540-1000
Work Efficiency(m/shift)	6500-7500
Tooth Type	Alloy bullet blade
Suspension Method	Standard three-point suspension
Matching Power (kw)	Tractor above 95kw	Tractor above 150kw	44-88kw and above tractor
Scope of application	Crushing of asphalt pavement, cobblestone pavement, weathered stone pavement and on-site mixing of various materials with different proportions such as cement stabilized sand		on-site mixing of various materials with different proportions such as lime, lime, crushed stone, cement stabilized sand, etc.

Advantages

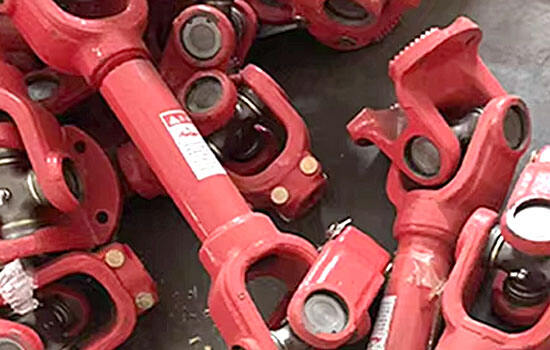

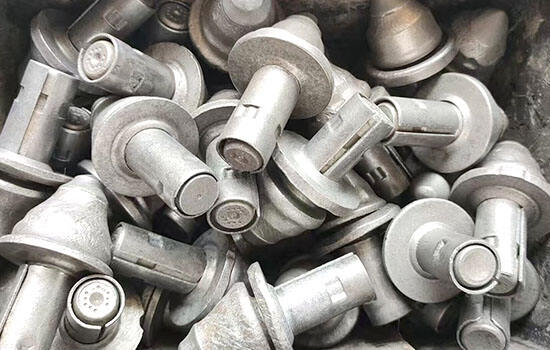

Cutting head The blade is made of manganese steel, which is stronger and more wear-resistant.	Universal joint Preferred cast steel material for efficient transmission.

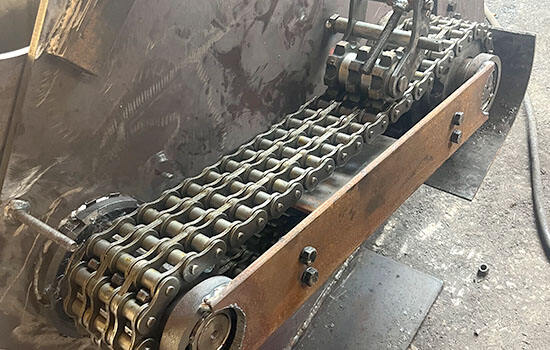

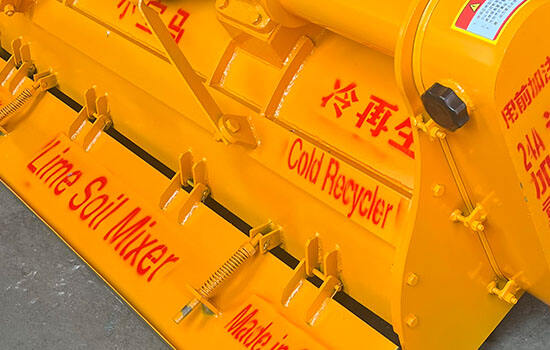

Two sided chain The reinforced chain drive is more stable and more efficient.	Thickened cabinet Thickened cabinet is more durable.
