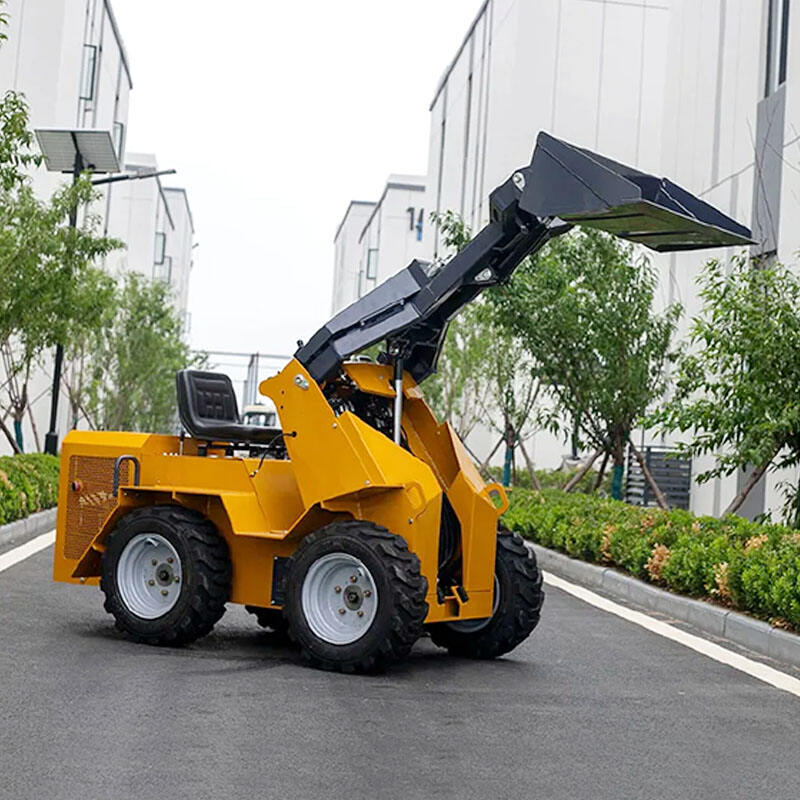

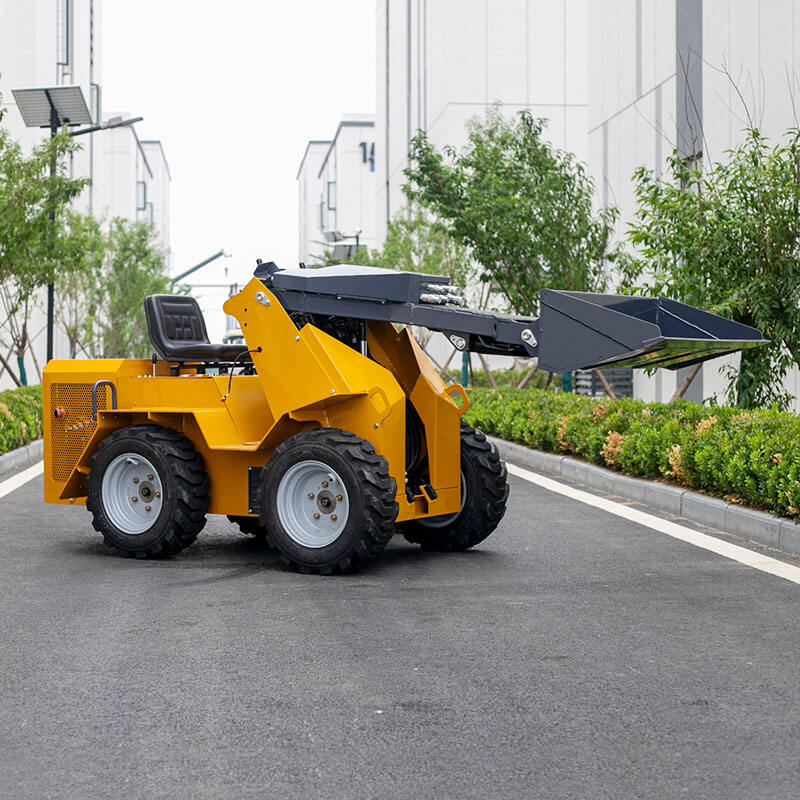

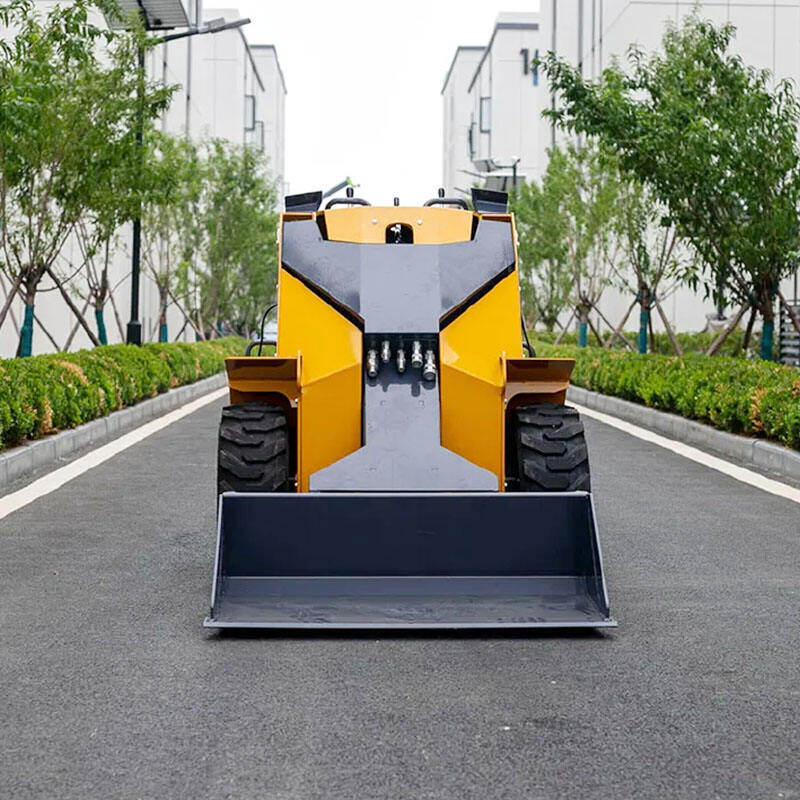

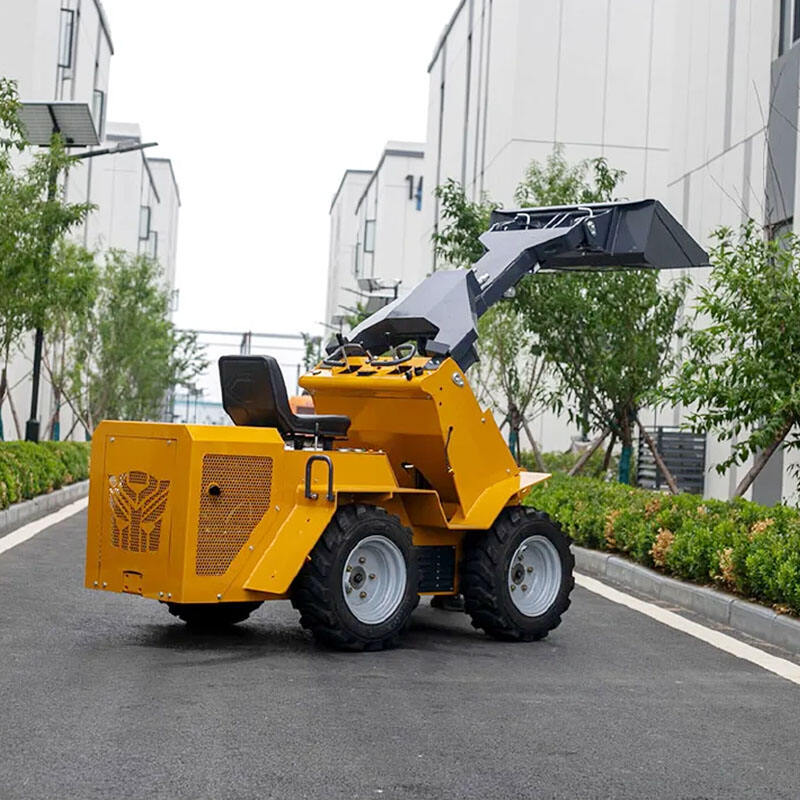

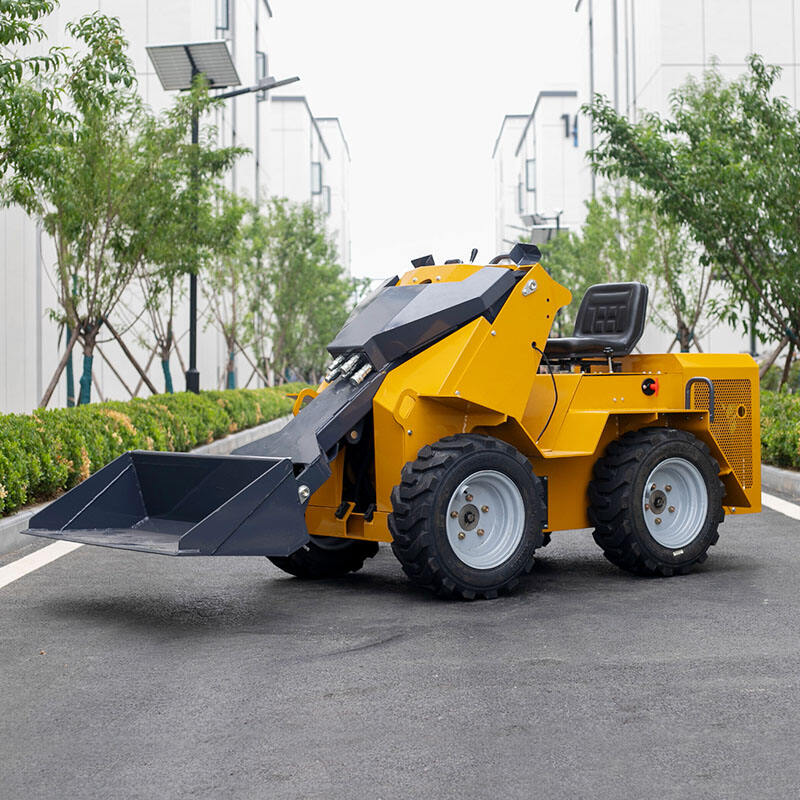

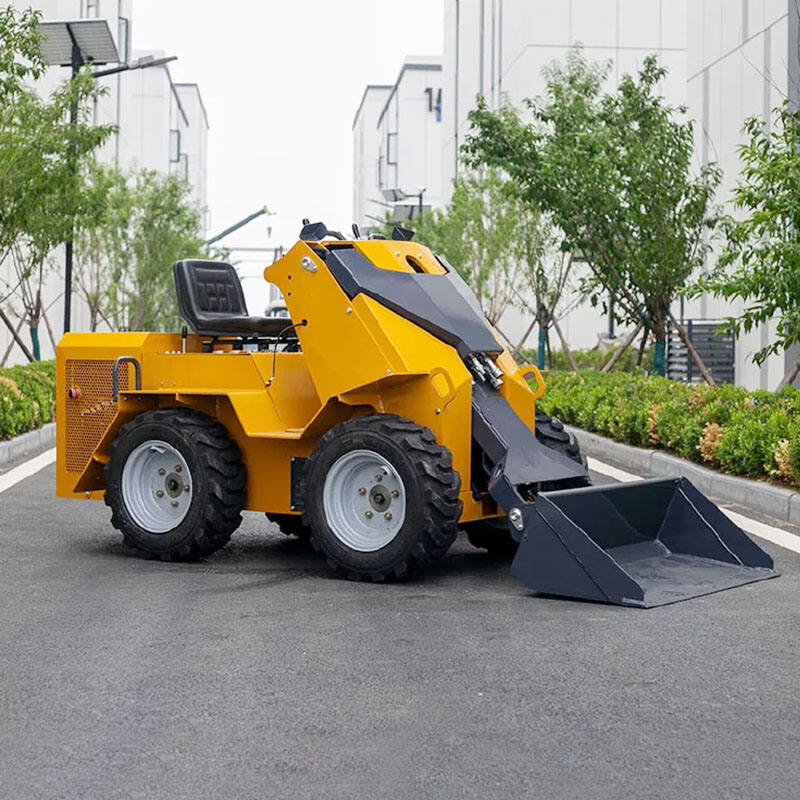

S490 Tire Type Skid Steer Loader

  • Overview
  • Technical Parameters
  • Recommended Products

Description

The skid steer loader is mainly suitable for working environments where the site is narrow, the ground is uneven, and the tasks change frequently. It is widely used in infrastructure construction, industrial sites, dock loading and unloading, urban roads, residential projects, barns, livestock sheds, airport runways, and other scenarios. It is also commonly used as auxiliary equipment for large-scale construction machinery, helping to improve overall work efficiency.

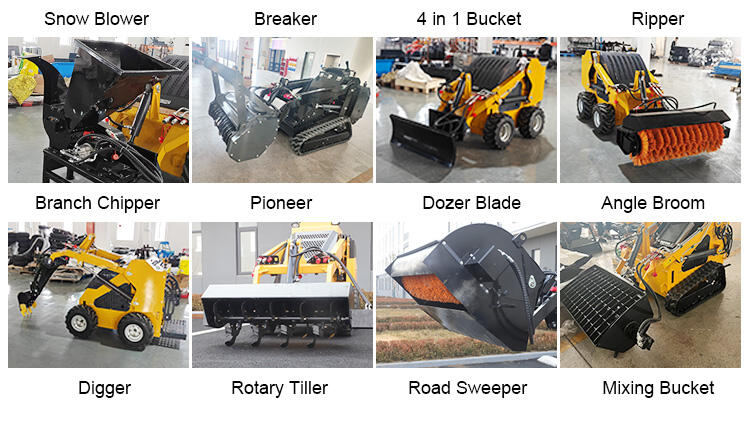

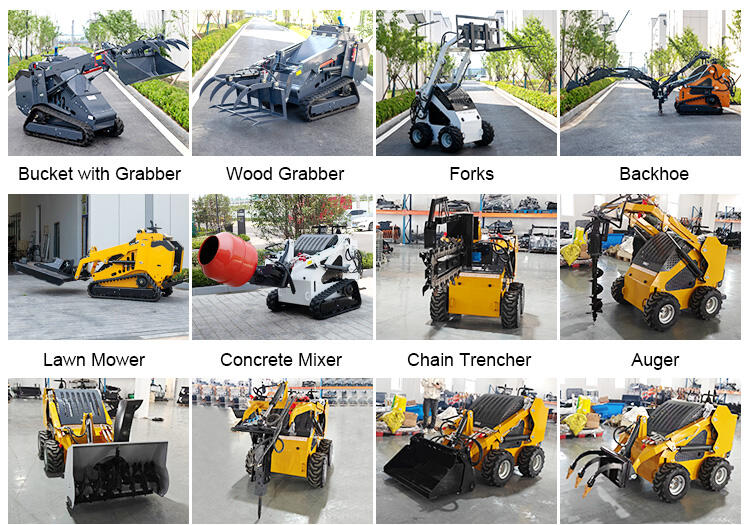

The skid steer loader can be equipped with a variety of attachments, such as mixing buckets, trenchers, auger drills, snow throwers, branch shredders, and excavators, allowing it to perform a wide range of tasks with great flexibility and adaptability.


Service

1.24h customer service online guidance, and provide guidance videos and product manuals.
2. Before shipment, technical personnel test the machines one by one to ensure quality.
3. Video about machine details. (shot as needed)
4. Core parts after-sales service up to 12 months.
5. If special parts are damaged, they will be sent by air express delivery.
6.For suppliers, we will cooperate with you for a long time and provide you with sufficient profit margin.

Application

The skid steer loader is very easy operation, convenient maintenance.
It is widely used in different fields, especially in the municipal construction for the high cost performance, multifunction with dozens of matching assistive devices. It makes your job much simpler and easier.

应用 (1).jpg应用 (2).jpg

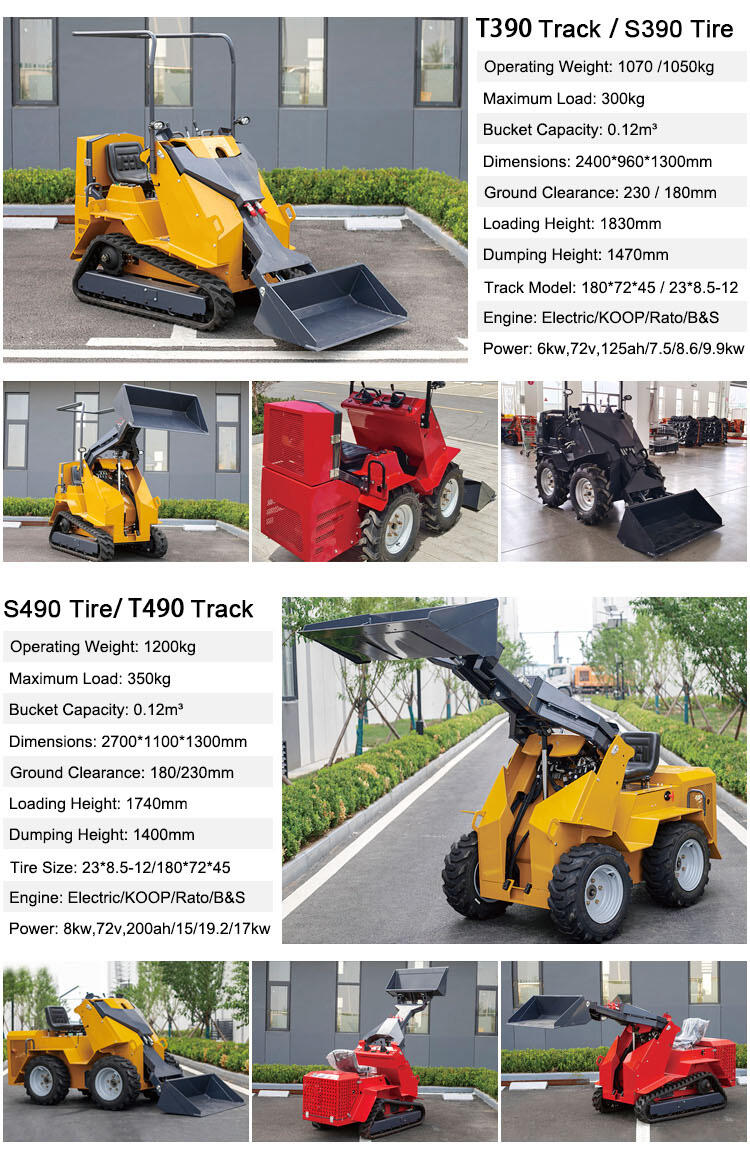

Model S490 Tire type
Basic performance parameters
Bucket width 1050mm
Distance from ground 180mm
Gradeability 25°
Maximum loading height 1740mm
Maximum unloading height 1400mm
Maximum height 2530mm
Minimum height 1300mm
Bucket capacity 0.12 m³
Bucket loading quality 350kg
Size
Dimensions 2700*1100*1300mm
Include Bucket length 2700mm
Does not include bucket length 2300mm
Engine
Brand Lithium electricity/KOOP/Rato/B&S
Model Lithium iron phosphate/192f/R740/Vanguard23
Rated power 8kw、72V、200ah/15/19.2/17kw
